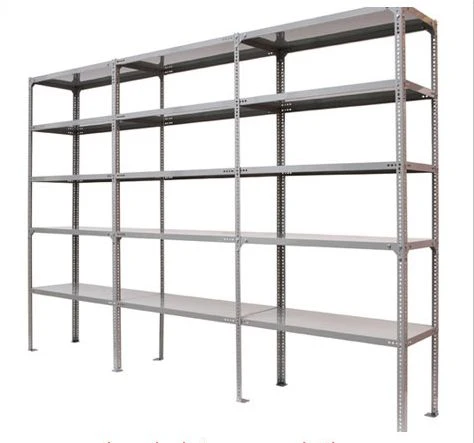

slotted-angle-rack China Logistic Equipment

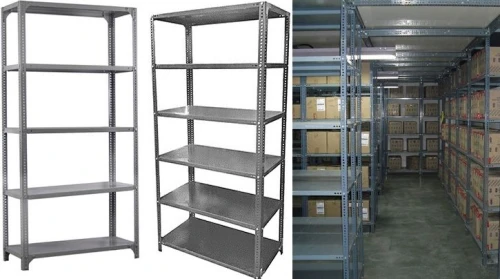

Is mainly composed of columns, steel layer board Suitable for artificial access lighter goods, can be stored with plastic turnover box many varieties of small products, widely used in electronic industry and small parts warehouse, can be realized by changing the coating powder or laid special rubber anti-static function, has low cost, safe and reliable, the assembly and disassembly simple characteristics, can be used alone, Can also be freely spliced into a variety of arrangements. The transfer function can even be realized by adding universal wheel mechanism at the footing. The top and bottom layers of the shelves are connected with the columns with double Angle codes and screws to make the shelves stable. The steel plate is bent by the Japanese standard SPCC cold plate according to the required size of the four sides, and the form of concave reinforcement welding is added below. The welding adopts spot welding. This structure has the characteristics of material saving, good load bearing and smooth surface.

1, shelf column: made of equilateral Angle steel bilateral punching, hole distance to 50mm along the straight line, column hole is used to connect the layer board;

2, shelf steel layer plate: cold rolled steel plate according to the required size of the four sides bending molding.

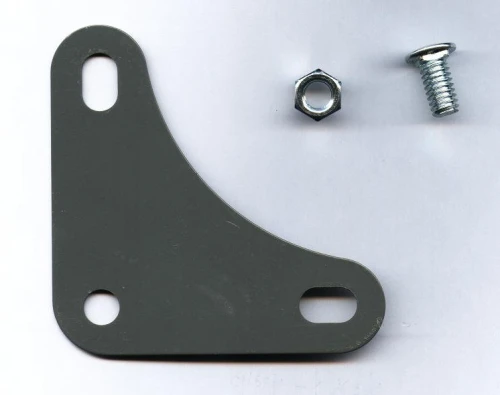

3, column and steel layer plate through the fastener pin and triangular fixed plate connected and fixed shelf.

4. After the shelf parts are processed and formed, the finished products are assembled after grinding, pickling, phosphating, automatic powder electrostatic spraying, drying and other processes. The shelf finished product surface is smooth and beautiful; Laminate can be adjusted up and down freely, convenient disassembly and assembly.
